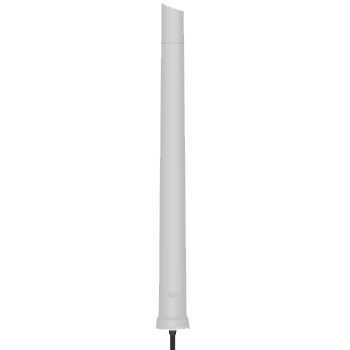

OMNI-600

410-470 MHz;698-960 MHz;1710-3800 MHz6.2dBiOmni-Directional4G LTE5G2x2 MIMOIP 65-40°C to +70°C
Omni-Directional, 2X2 MIMO LTE Antenna
410 – 3800 MHz, 6.2dBi
  • 2X2 MIMO high performance omni-directional antenna
  • Consistent gain over a wide frequency band
  • Increased connectivity stability
  • Excellent broadband quality antenna
  • Vandal and water-resistant enclosure
Close Trigger
Product Overview

The OMNI-600 is a unique new design with improved 2×2 MIMO electrical performance. The ultra-wide band covers all contemporary operating frequencies with excellent balanced gain across all frequencies. Higher frequencies are not compromised, and the antenna design allows Poynting to have superior pattern control over the entire frequency range, making the OMNI-600 a true high performance omni-directional antenna. The OMNI-600 guarantees signal reception almost everywhere, making it usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network. The antenna is future proof as it covers the 450 MHz frequency and 3.5 GHz CBRS band which is gaining popularity in various regions and countries.

Product Options
SKU A-OMNI-0600-V1-02
COAX Cable Type Twin HDF-195
COAX Cable Length 5m
Color Off White
Product Accessories
Shipping Details
SKU A-OMNI-0600-V1-02
EAN 6009880915101
HS Code #85291069
Packaged Weight 1.64kg
Packaged Dimensions 700 x 150 x 100 mm
Master Box QTY 10
Master Box Weight 16.7kg
Master Box Dimensions 350 x 560 x 770 mm
Country of Origin China
