OMNI-297
698-960 MHz; 1710-2700 MHz;3400-3800 MHz2dBiOmni-DirectionalIoT & M2M5G ReadyIP 68-40°C to +70°CFire Resistant
OMNI DIRECTIONAL, WIDEBAND LTE/5G POYNTING RHYNO ANTENNA
698 – 3800 MHz, 2dBi
- Medium gain, omni directional antenna
- Suitable for 5G deployment up to 3800 MHz
- Compatible with 4G/3G/2G technologies, supports 2.4 GHz Wi-Fi
- Ideal for IoT and M2M applications
- Robust and low-profile design
- Dust and water ingress protected with IP68 rating
Closing tab trigger
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Product Overview
The new OMNI-297 antenna forms part of our new Poynting “Rhyno” antenna range. The OMNI-297 is wideband cellular antenna that operates from 698 to 3800 MHz, covering all the contemporary 5G and LTE frequency bands. The antenna is designed for superior pattern control over the entire frequency range, making the OMNI-297 an exceptional omni-directional antenna for its size. The constant gain across the entire frequency range improves the LTE performance features, such as multi carrier aggregation (CA). The ideal operation for the antenna will be for fixed installations of any cellular bands. It is also ideal for machine to machine (M2M) and internet of things (IoT) applications that communicate through the GSM networks (GPRS/EDGE/3G/HSPA/LTE).
Product Options
| SKU | A-OMNI-0297-V1-01 | ||||
|---|---|---|---|---|---|
| Coax Cable Type | RG-58 | ||||
| Coax Cable Length | 0,60m | ||||
| Connector Type | SMA (m) | ||||
| Colour | Grey |

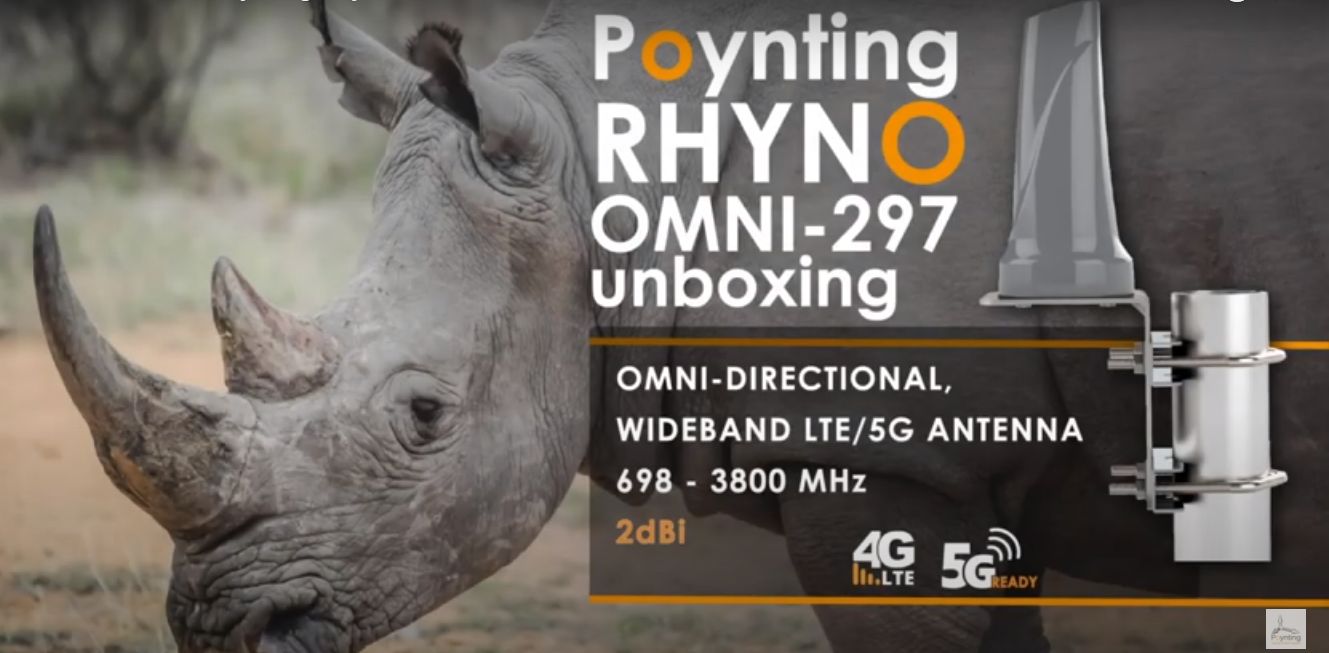

Product Video's
Downloadable Files
FAQ
Shipping Details
| SKU | A-OMNI-0297-V1-01 | ||||
|---|---|---|---|---|---|
| EAN | 6,01E+12 | ||||
| HS Code | #85291069 | ||||
| Packaged Weight | 0.4kg | ||||
| Packaged Dimensions | 240 x 100 x 85 mm | ||||
| Master Box QTY | 50 | ||||
| Master Box Weight | 20.5kg | ||||
| Master Box Dimensions | 520 x 495 x 400 mm | ||||
| Country of Origin | China |
